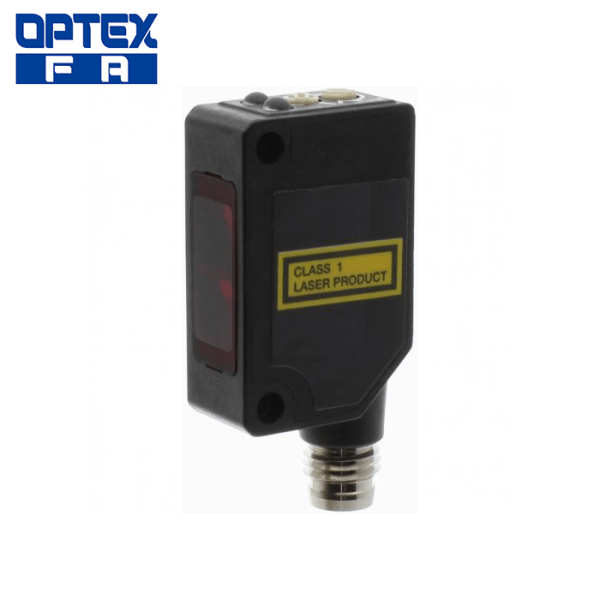

Sensor Supresor de Fondo 31x20x11 M8 5-30CM. PNP L/D BGSZL30CP

Specifications

• Series: ZL
• Sensing Mode: Background Suppression
• Sensing Mode Features: Opaque & Translucent Target Detection
• Sensor Body Type: Compact
• Sensor Body Feature: Side Screw Mounting
• Sensor Type: Self-contained
• Sensitivity Setting Type: Potentiometer
• Display Type: LED Indicator
• Sensor Features: Mid Range Type with 50mm to 300mm setting distances with 4-turn potentiometer and 0.3mm accuracy. High speed 250µs response and 5% hysterisis. Ø1.5mm beam spot at 100mm.
• Laser Beam Spot Size: ø 1.5mm
• Laser Light Source Details: Red Semiconductor laser – Class 1 FDA, 650nm
• Laser Output: 3.5 mW
• Supply Voltage Details: 10 to 30 VDC
• Setting Distance: 50mm to 100mm
• Control Output: PNP
• Output Details: 1 each PNP Output
• Output Operation Mode: Light-On / Dark-On
• Construction: ABS
• Temperature Rating: -10º to +50º C
• Protection Rating: IP 67
• Connection Type: Quick Disconnect
• Connection Detail: M8 4P QD

Las imágenes y especificaciones, mostrados o contenidos en esta Web pueden estar sujetas a cambios.
