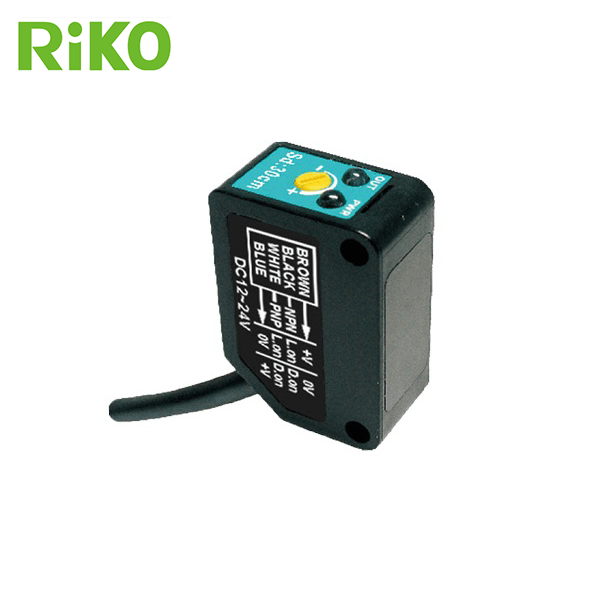

Sensor Proximidad 31x20x11 50CM PROG. PK3DU50NP

Modelo: PK3-DU50NP

Model	Miniature Photo Sensor
Sensing distance	Diffuse reflection
Sensing distance	50cm,White paper 10x10cm
Emitting light	Infrared LED 850 nm
Operating voltage	DC12 ~ 24V
Current consumption	25 mA Max.
Load current	100mA Max. at DC24V
Model / Type	NPN/ PNP : L.on / D.on
Response time	1000 Hz
Insulation resistance	20M Ω min (DC500V)
Voltage withstandability	AC1000V 60Hz for 60 Sec.
Opera tetemperature	-25℃ ~ + 60℃ (No freezing allowed)
Operating temperature	35%~ 85% RH
Protection degree	IP64
Option	Mounting Bracket / PK-M001 M84R-2M-PVC / M84RL-2M PVC
Casing material	ABS
Wiring method	Pre-wired Ø4.2 x 2 M / 4-wires
Weight	60g
