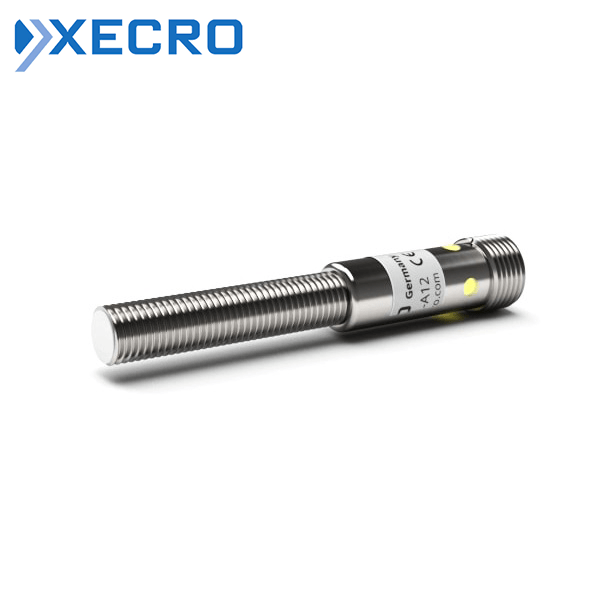

Sensor Inductivo M8 M12 2mm PNP NO IPS8S2PO70M12
Código IPS: 613006
Modelo: IPS8-S2PO70-A12
Specifications
| Common | |
| Series | 3-wire DC |
| Sensing Distance Class | increased |
| Tariff Code | 85365019 |
| Weight | 0.0000 |
| Functional | |
| Sensing Distance | 2 mm |
| Mounting | flush |
| Output Function | NO |
| Output Polarity | PNP |
| Operating Voltage | 10…30 VDC |
| Reverse Polarity Protection | built-in |
| Current Consumption | <8 mA |
| Current Load Capability | 200 mA |
| Short Circuit Protection | built-in, self-resetting |
| Voltage Drop | <1.5 V @ 200 mA |
| Switching Frequency | 2000 Hz |
| Repeatability | <1 % (Sn) |
| Hysteresis | 3…15 % |
| Reduction Factors | Alu 0.45 · Brs 0.50 · SS 0.85 |
| Operating Temperature | -20…70 °C · -4…158 °F |
Las imágenes y especificaciones, mostrados o contenidos en esta Web pueden estar sujetas a cambios.
