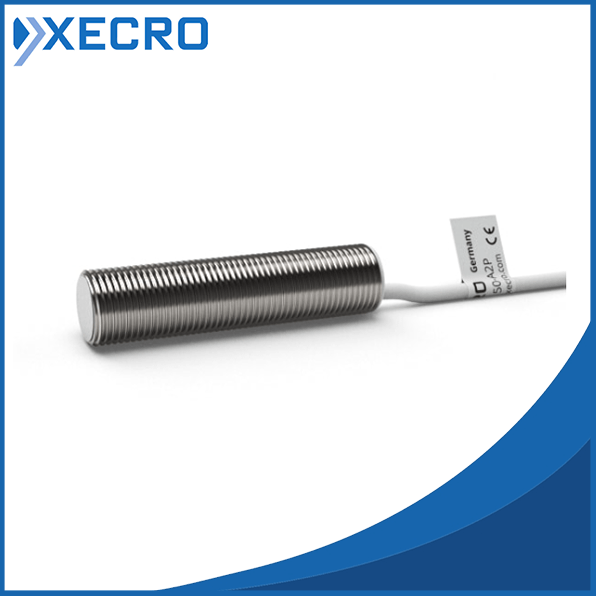

Sensor Inductivo M12 Rasante PNP NO IPS12-S4PO50-A2P
Código IPS: 613028
Modelo: IPS12-S4PO50-A2P
Especificaciones
| Common | |
| Series | 3-wire DC |
| Sensing Distance Class | increased |
| Functional | |
| Sensing Distance | 4 mm |
| Mounting | flush |
| Output Function | NO |

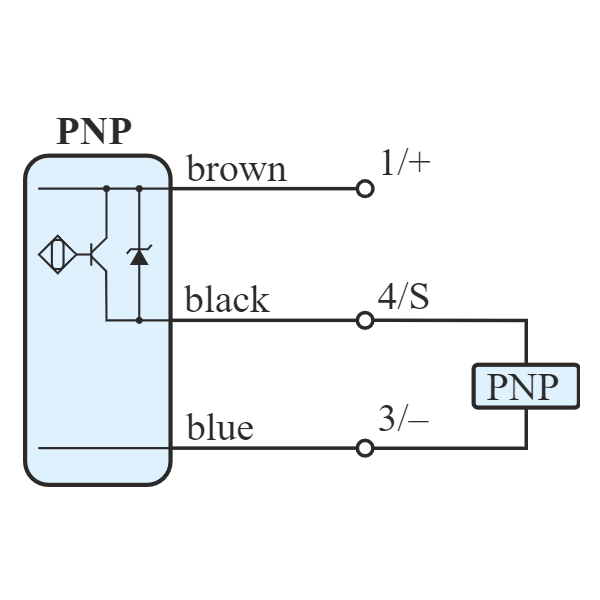

| Output Polarity | PNP |
| Operating Voltage | 10…30 VDC |
| Reverse Polarity Protection | built-in |
| Current Consumption | <8 mA |
| Current Load Capability | 200 mA |
| Short Circuit Protection | built-in, self-resetting |
| Voltage Drop | <1.5 V @ 200 mA |
| Switching Frequency | 1000 Hz |
| Repeatability | <1 % (Sn) |
| Hysteresis | 3…15 % |
| Reduction Factors | Alu 0.45 · Brs 0.50 · SS 0.85 |
| Operating Temperature | -20…70 °C · -4…158 °F |
| Mechanical | |
| Housing Material | brass, nickel plated |

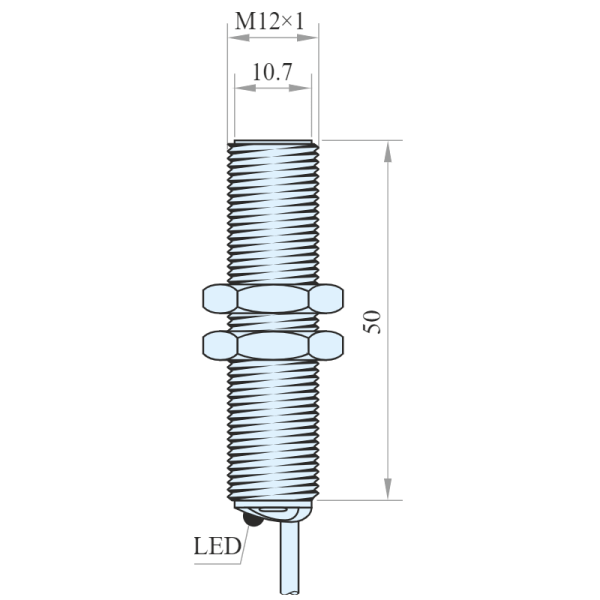

| Housing Length | 50 mm |
| Max Mounting Torque | 15 Nm |
| Sensing Face Material | PBT |
| IP Code | IP67 |
| Electric Connection | cable 2 m PVC |
| Switching Indicator | built-in |
Las imágenes y especificaciones, mostrados o contenidos en esta Web pueden estar sujetas a cambios.
