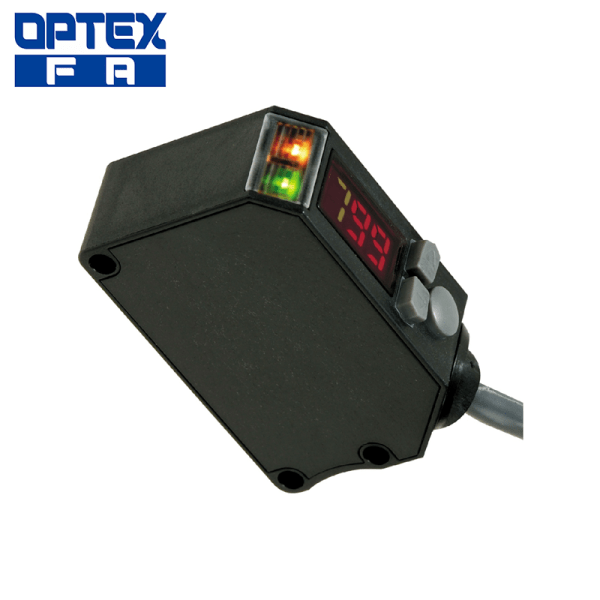

Lector Tacas 45x30x15 TIMER/RGB 19MM. NPN L/D DM18TN

Series: DM18T
Detection Type: Color & Color Mark Sensing
Light Source: RGB LED
Sensor Type: Self-Contained
Features: Simple settings and fine adjustments are possible. Thanks to the teaching method, setting is possible by simply pressing a button. There are also buttons for manual adjustments, making it possible to configure sensitivity settings to the desired level while viewing the digital display. Preset color/mark settings can be recalled with the built-in bank switching function.
Sensitivity: PB Teach
Teaching: Color mode: 1-point teach. Mark mode: 2-point teach w/ full auto-teaching
Display Type: Digital Display & LED Indicator
Display Details: 7-segment, 3-digit LED display – Current memory bank number & receiving light quantity. LED Indicator: Output (orange), stability (green)
Beam Spot Optimum Distance: 1x6mm
Optimum Distance: 18mm
Sensing: 16mm to 20mm
Includes: Yes
Timing: ON-delay, OFF-delay, One-shot (0 to 990 ms)
Number of Storage: 8
Control Output: NPN
Output Details: Light-ON / Dark-On selectrable
Response Time: Color mode: 800µs Mark mode: 250µs
Supply Voltage: DC
Supply Voltage Details: 10 to 30VDC
Material: ABS housing, PMMA lens
IP Rating: IP67
Temperature: -25 to +55° C
Connection Details: Cable 2 meter
